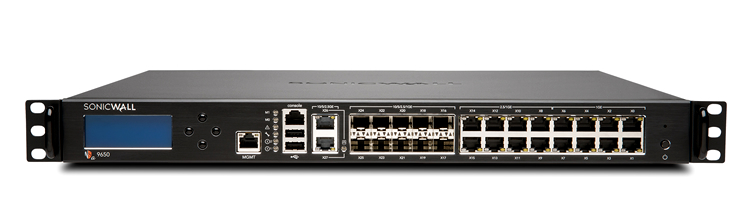

SonicWall NSa9650
SonicWall NSa 9650, dağıtılmış işletmeler ve büyük ağlar için ölçeklenebilir güvenlik sağlar. 17.1Gbps güvenlik duvarı çıkışı ve tüm güvenlik hizmetleri açıkken 5Gbps'yi koruyan SonicWall NSa 9650, çoklu gigabit hızlarında derin güvenlik sağlar.
SonicWall Ağ Güvenliği cihazı (NSA) serisi, orta ölçekli ağlardan dağıtılmış kuruluşlara ve veri merkezlerine kadar geniş bir yelpazede değişen organizasyonlara yüksek performanslı bir güvenlik platformunda gelişmiş tehdit önleme olanağı sağlar. SonicWall Capture Cloud Platform'da yenilikçi derin öğrenme teknolojilerini kullanan NSA serisi, kuruluşların ihtiyaç duyduğu otomatik gerçek zamanlı ihlal algılama ve önleme hizmetlerini sunar.
| NSa 9650 SERIES | |
|---|---|
| Operating System | SonicOS 6.5.4 |
| Interfaces | 10 x 10-GbE SFP+, 2 x 10-GbE, 8 x 2.5-GbE, 8 x 1-GbE, 1 GbE Management, 1 Console |
| Expansion | 1 Expansion Slot (Rear)* |
| Built-in Storage (SSD) | 1TB, 128 GB |
| Management | CLI, SSH, Web UI, Capture Security Center, GMS, REST APIs |
| SSO Users | 100.000 |
| Maximum Access Points Supported | 192 |
| Logging | Analyzer, Local Log, Syslog, IPFIX, NetFlow |
| FIREWALL/VPN PERFORMANCE | |
|---|---|
| Firewall Inspection Throughput | 17.1 Gbps |
| Threat Prevention Throughput | 9.4 Gbps |
| Application Inspection Throughput | 11.5 Gbps |
| IPS Throughput | 10.3 Gbps |
| Anti-malware Inspection Throughput | 8.5 Gbps |
| TLS/SSL Inspection and Secryption Throughput (DPI SSL) | 2.25 Gbps |
| IPSec VPN Throughput | 10.0 Gbps |
| Connections Per Second | 130,000/sec |
| Maximum Connections (SPI) | 12.500.000 |
| Maximum Connections (DPI) | 5.000.000 |
| Maximum Connections (DPI SSL) | 550.000 / 320.000 |
| VPN | |
|---|---|
| Site-to-site VPN Tunnels | 12.000 |
| IPSec VPN Clients (maximum) | 2.000 (6,000) |
| SSL VPN Licenses (maximum) | 50 (3.000) |
| Encryption/Authentication | DES, 3DES, AES (128, 192, 256-bit), MD5, SHA-1, Suite B Cryptography |
| Key Exchange | Diffie Hellman Groups 1, 2, 5, 14v |
| Route-based VPN | RIP, OSPF, BGP |
| NETWORKING | |
|---|---|
| IP Address Assignment | Static, (DHCP, PPPoE, L2TP and PPTP client), Internal DHCP server, DHCP relay |
| NAT Modes | 1:1, many:1, 1:many, flexible NAT (overlapping IPS), PAT, transparent mode |
| VLAN Interfaces | 512 |
| Routing Protocols | BGP, OSPF, RIPv1/v2, static routes, policy-based routing |
| QoS | Bandwidth priority, max bandwidth, guaranteed bandwidth, DSCP marking, 802.1p |
| Authentication | LDAP (multiple domains), XAUTH/RADIUS, SSO, Novell, internal user database, Terminal Services, Citrix, Common Access Card (CAC) |
| VoIP | Full H.323v1-5, SIP |
| Standards | TCP/IP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS, IEEE 802.3 |
| Certifications (in progress) | ICSA Firewall, ICSA Anti-Virus, FIPS 140-2, Common Criteria NDPP (Firewall and IPS), UC APL, USGv6, CsFC |
| High Availability5 | Active/Passive with State Sync, Active/Active DPI with State Sync, Active/Active Clustering |
